and SPK/YMK Manned Manuevering Unit

This section has been added as a follow-up to the Soviet Union Krechet suit page, because the Orlan suit owes so much of it's design to the Krechet.  The Orlan is being used to this day on board the International Space Station.


Above: Orlan M on EVA on Mir.  Note that the "CCCP" Soviet Union flag (left shoulder) seen on the Orlan below (and top right on this page) has been replaced by the flag of the Russian Federation. Also note the Mir program patch on the right shoulder
All photos below this point are thumbnails.  Click on them for large image.
Mr. Michael Koivisto,
a great contributor
to My Little Space
Museum,
stands next to an Orlan suit display.

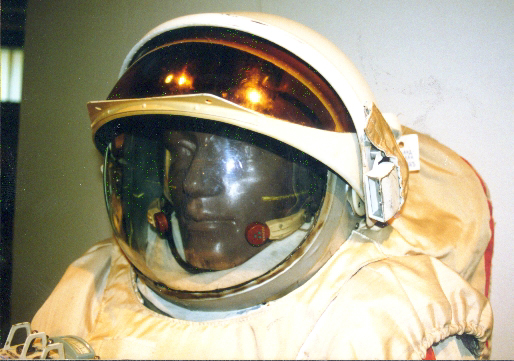

The helmet.
Note the twin
mikes
in the comm
carrier.
Primary controls
in
Cyrillic text
Primary controls
in

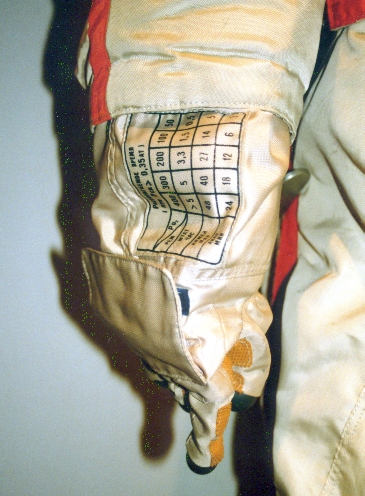

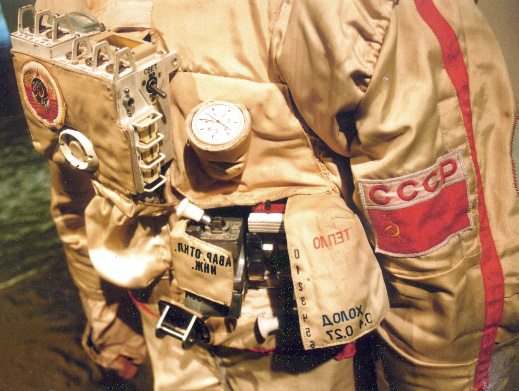

Cyrillic text		 Pressure
table
written on
right suit
glove

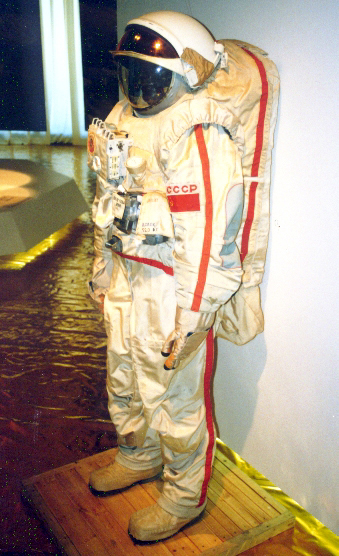

3/4 view Left side
view		 Engineer
testing fit
of Orlan suit		 same as at left
Above: First 6 photos courtesy Mr. Michael Koivisto.

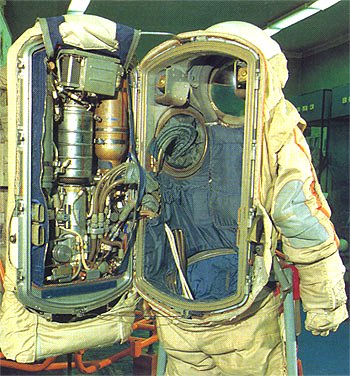

Backpack/rear
hatch details.
Compare to this
photo of
Krechet

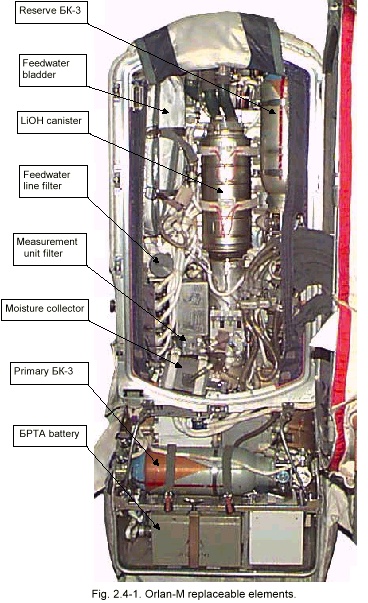

suit		 Replacable
items in
backpack
Above: Backpack interior details

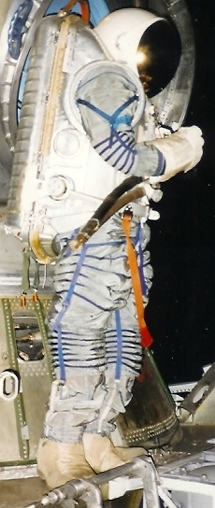

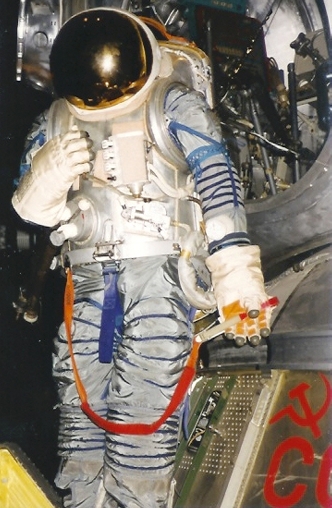

Early Orlan inboard

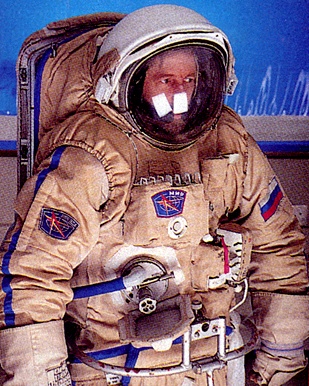

during EVA prep		 Orlan M
on EVA
Above: In-flight photos

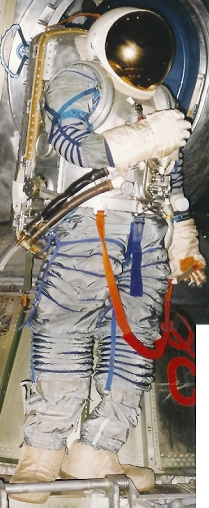

Above: 5 photos of the Orlan suit on display with the Eurodisney LK Lunar Landing Vehicle.  Note that the exterior thermal layer is not applied, showing the underlying details of the suit.
Zvezda SPK/YMK Manned Manuevering Unit

The SPK Manned Manuevering Unit was flown tethered twice outside the Mir space station.
Left attached to the Mir, it was destroyed when that vehicle reentered earth's atmosphere.

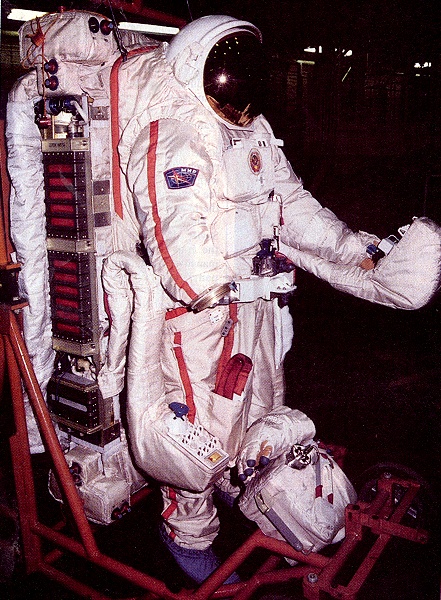

Above: Left, center, and right views of Orlan-SPK EVA configuration.
Note similarity to US MMU.  Right glove of suit has been removed and
right arm of SPK is folded down.  Small white pack at base of display
was worn at waist while on EVA.  It is probably a tether reel pack.
Right photo is of rear of SPK, showing flaps opened to reveal main prop tanks.

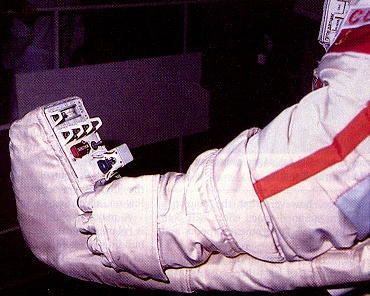

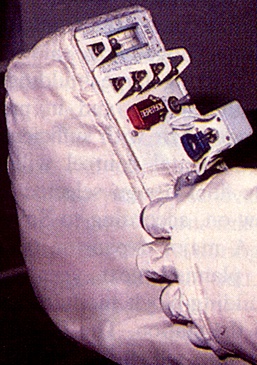

Above Left: Closeup from photo above, left center.  Right hand controller, stowed
Center: Left hand controller, deployed
Right: Closeup from center photo of left hand controller

Nice photo of the Orlan-SPK on EVA
